Punch/Fiber Laser Combo Machine
— ACIES 2515 AJ

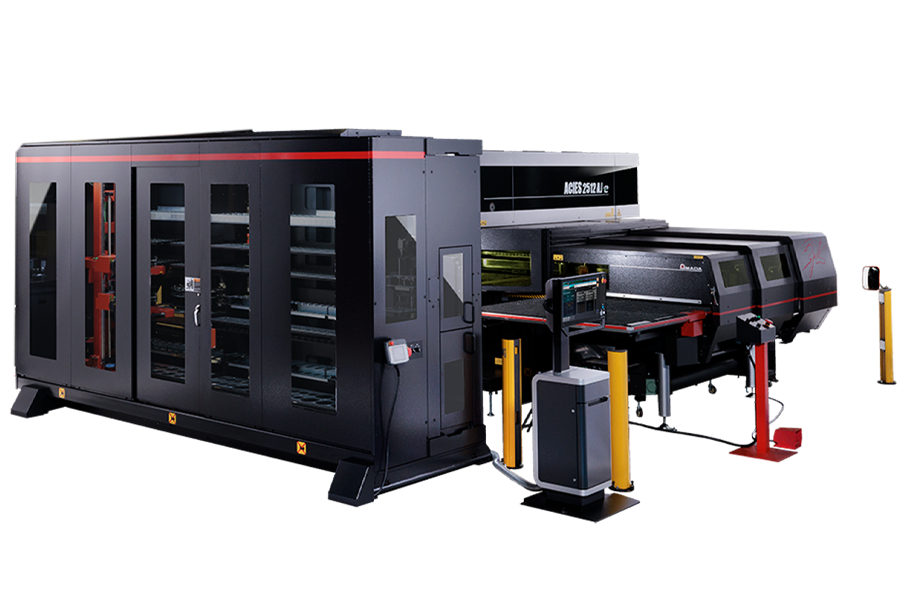

ACIES 2515 AJ

Standard Features

The ultimate in state-of-the-art punch/laser combination machines, ACIES 2515 AJ provides unmatched productivity and scratch-free processing of complex sheet metal parts. A 33 ton servo punching capacity and 4KW Fiber Laser offers fast cutting/punching speeds with low power consumption. This innovative series features a 300 station tool storage capacity with automatic tool and laser nozzle change capabilities for around-the-clock, unattended operation.

The ACIES AJ series boasts extremely fast hit rates, versatile forming and tapping capabilities, and stable laser processing with unlimited shape cutting flexibility. Combined with Amada's latest automation offerings featuring material storage towers, parts separation and stacking, and "just in time" conveyor systems for rapid access to finished parts, the ACIES 2515 AJ challenges any fabrication process for maximum productivity in the smallest floor space.

  • Maintenance-free servo-electric drive with 33 ton punching force
  • Fiber laser system results in 45% power reduction compared to CO2 systems while providing up to 3 times the cutting speed.
  • User-friendly AMNC 3i touchscreen control w/ 21" monitor
  • Extensive cut condition database
  • Quick-change lens and automatic nozzle change system with 4 nozzle availability
  • Automatic Cutting Plate cleaning system
  • Automatic Laser Slag removal system for extended operation
  • Tool ID system (with QR codes)
  • Multiple Purpose Turret (MPT) with 4 station tapping function
  • ZR turret – Full flat brush table ensures scratch-free processing
  • Automatic die height adjustment – no shimming of dies required
  • High-speed punching and marking
  • Increased form processing speeds
  • Air-blow oil mist tool lubrication system
  • Power vacuum die system eliminates slug pull
  • TSU – Tool storage with 300 punches and 600 dies
  • Large work chute
  • Sheet load/unload and part picking options
  • ECO-friendly power saving drive system
