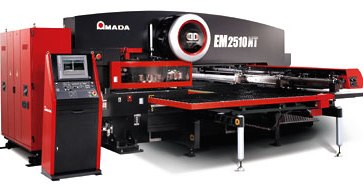

TurretsMain/EM2510NT | AMADA CANADA

High productivity with slug pull protection
- Vacuum-powered slug pull protection system!
- 500 HPM on 1" center - world's highest hit rate!
Up to 50% documented cost reduction over conventional turret presses
Connectivity with your entire shop through the machine's NT-based controller - instantly access part programs, multi-media help files and production schedules

High speed punching - newly designed AC servo direct twin drive improves hit rate, 500 HPM on 1" centers and 1800 SPM marking system
100" X-axis table can process 8' sheets without repositioning, reducing process time and improving accuracy
Energy-saving design levels out power consumption, reducing it by up to 60% compared to conventional machines
Higher positioning speed improves productivity
Brush table design provides scratch-free processing, eliminating secondary finishing, and also minimizes noise during positioning
Free-standing, PC-based network CNC Control allows for flexible layout
Increased turret feed clearance - .984" accepts higher forming process
Large turret to reduce setup is available in 45 station w/4 auto-index or 58 station w/2 auto-index
Power vacuum slug pull system (patent pending) virtually eliminates slug pull concerns
