Brochure: LC C1 NT Series

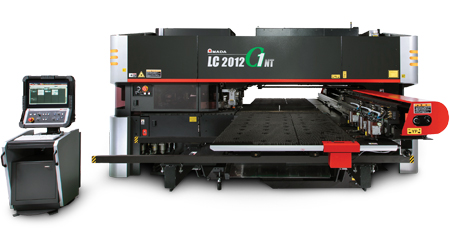

The laser portion of the C1 features the AMADA/Fanuc AF2000i-B LU2.5 resonator with 2.5 kilowatts of cutting power. The laser head moves in the Y-axis via a direct drive servo mechanism for maximum speed and accuracy, and is isolated from punching vibration to help maintain beam integrity and cut quality. A cartridge-type lens assures simple and fast lens changes when required. The resonator is located on a frame designed to reduce floor space requirements and to provide isolation from punching vibration.
The punching portion of the C1 is based upon the highly successful AC-series of 22-ton servo drive turret punch presses. The servo drive not only offers punching speeds of up to 370 hpm on 1” centers, but is also more efficient than hydraulic punch drives, requiring no pump or chiller.
To maximize punching productivity in conjunction with laser cutting, the C1 features the new 45-station MPT Multi-Purpose Turret. Two of the unique features of the MPT turret include four tapping tool stations (English and metric thread tools available) and three powered die lift stations to facilitate upward forms while reducing material scratches and preventing downward forms from hitting the forming dies during sheet movements.
The C1 is equipped with a versatile brush table that provides a number of features to increase productivity and part quality. The brushes help reduce material scratching, while limiting punching noise. Pop-up urethane rollers help reduce brush wear during the laser processing of thick materials. Special high-temperature brush material is installed in the laser cutting area (Y-axis), and a large 15-3/4” x 50” work chute helps ensure the easy removal of finished parts and scrap. A lifting brush table section helps to remove downward forms from the die before the next sheet moves into place. An automatic sheet loading fea#top-wrapperply requires the operator (in manually loaded applications) to place the sheet within approximately 2” of the X-Y gauge blocks, and activate the automatic loading mechanism. This provides accurate material placement against the gauge blocks and activates the pneumatic work clamps. With its full 4’ x 8’ sheet capacity in up to 1/4” thick material, the C1 achieves better material utilization ratios, especially when using AMADA’s Dr. ABE Blank software for dynamic nesting.
Designed with a small footprint to reduce the amount of floor space required, the C1 is available in both stand-alone (manual load and unload) and fully automated versions. The automated version is equipped with three newly-designed components; a sheet load/unloader, a part remover, and a programmable conveyor for finished parts. The MP-C1 sheet loader/unloader can unload a sheet of tabbed parts (or scrap) and load a new sheet in approximately 45 seconds, which helps to greatly streamline this portion of the production process. The PR-C1 part removal system is mounted on the machine frame to help maintain the small footprint of the C1, and will automatically remove parts ranging from as small as 4” x 2” to as large as 20” x 20” and weighing up to 26.5 pounds. Once picked from the sheet, the PR-C1 places the parts on an included 177” long conveyor with multiple feed and stacking options.
The optional MP 2512 C1 automatic sheet loader maintains high levels of productivity by eliminating operator intervention during the loading process. The compact design takes up a minimal amount of valuable floor space. Integration with the LC C1 controller reduces setup time and provides simple, reliable operation.
