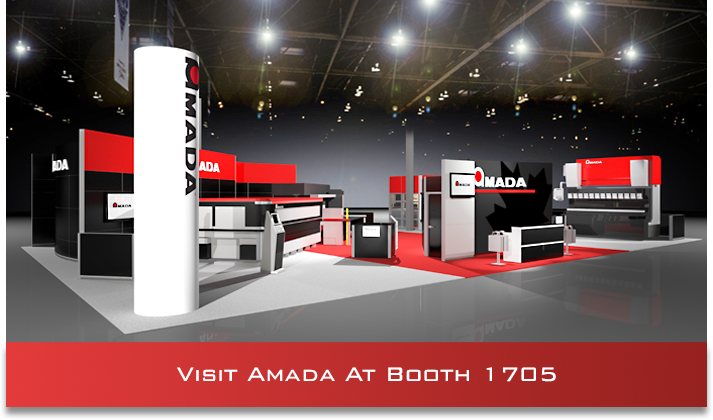

This year at FABTECH Canada, Amada is demonstrating the latest developments in fiber laser technol-
ogy and advanced bending enhanced by digital technology. The FLCAJ 3015 fiber laser, with a maximum
light conversion efficiency of 75% and a maximum “wall plug� efficiency of 30%, produces a laser beam
with a wavelength that is approximately one tenth of that emitted by a conventional CO2 laser — resulting
in Process Range Expansion (P.R.E.) by ensuring that unique materials such as copper, titanium and
brass can now be cut quickly and precisely. The HG 1303 press brake utilizes two servomotors that are
controlled by hybrid pumps to provide uncompromising precision while lowering energy consumption.
The stability and accuracy of the HG series is enhanced by a new, highly-rigid frame design that features
a larger open height than other machines in its class. The increased distance between tooling and greater
stroke length yields a larger processing area — enabling deep box bending while making part extraction
faster and easier.

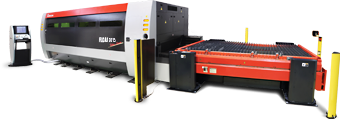

FLCAJ 3015
High-speed, high-precision, fiber laser cutting system
HG 1303
Servo/Hydraulic
Press Brake
CLICK TO REGISTER SHOW DATES March 18
10:00am - 6:00pm
March 19
9:00am - 5:00pm
March 20
9:00am - 4:00pm
Toronto Congess Centre 650 Dixon Road
Toronto, ON M9W 1J1
d tool change. Dedicated bending grip tools are specifically designed for small components.
Auto Tool Changer/Hand Changer – Equipped with Automatic Hand Changing station for switching between tool changing and bending operations.
Thickness Detection System (TDS) – TDS reads the variance in material thicknesses and compensates depth position automatically for stable and correct bending.
High Rigitity and Larger Open Height – TDS high-rigidity frame allows for a larger open height and stroke.
Potentiometer backgauge system with additional side gauge
i style="margin-left: 8px;">
Financing
EG Series
Features
The EG 6013 is an ultra-high precision, high-speed compact bending solution featuring an advanced and precise Dual Servo Power drive system.
Features of the EG 6013 press brake include:
- Dual Servo Power (DSP) Drive - Extremely fast approach, bending and return speeds – provide faster cycle times and results in more parts per hour.
- AMNC 3i - An 18.5-inch multi-touch display offers multiple modes of data entry (angle, depth, 2D and 3D) for the utmost in programming flexibility.
- L-Shift Back-Gauge – 5-axis back gauge speeds setup for complex parts. High-speed movement on all axes ensures that the gauge fingers are positioned as quickly as the operator positions the part.
n="center" valign="middle">
 |
The need to separate ourselves from the pack led us to the decision to buy a CO2 laser cutter and press brake. We evaluated five different manufacturers and both used and new machines. We decided on the HDS press brake, FO3015NT 4000 watt flying optic laser, and EZ-Cut Nitrogen generator system offered by Amada America for a number of different reasons. The highest of them being with every expectation that this new venture will be successful Amada has the most complete line of precision sheet metal equipment. They also have a reputation for building reliable machinery and having the best service in the industry.
The Amada FO3015NT laser machine has proved to fill every possible requireme
|
