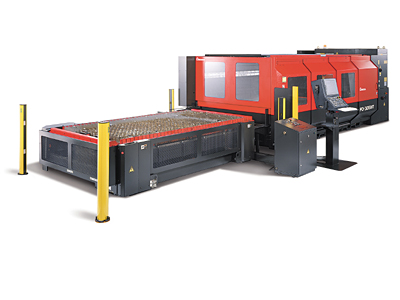

FO 4020NT Standard Features

The FO 4020NT is designed and engineered to reliably and economically cut all types of material in a full range of thicknesses.

• Maximize utilization with minimal setup between jobs
• High speed processing of thin and thick materials
• Operator-friendly windows-based network compatible control
• X-Axis "dual drive" rack & pinion gantry for precise location at the fastest speed
• High-speed pallet shuttle
• Cast iron frame for superior stability
• Water Assisted Cutting System (WACS™) uses an adjustable water mist to absorb heat generated by the cutting process
• 6' x 13' maximum sheet size
• 3150 IPM maximum X- and Y-axis speed (4454 IPM max. at 45° vector)
• 2362 IPM maximum Z-axis speed
• Fanuc 160iL 32-bit control
• 4000 watt CW laser source utilizing the latest technology to improve optic life.
