First Article Inspection

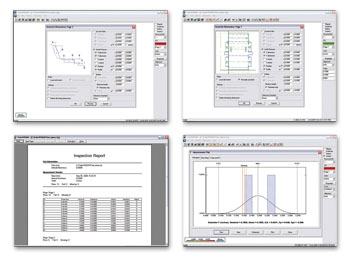

Since FabriVISON is fully integrated with AP100US, inspections can be performed by the machine operator right at the production station. A full scan is completed in seconds while comparing each measurement to CAD specifications. This reduces the time between CAD drawing and first article inspection up to 96%.

Variable Height Scanning

FabriVISON detects a part’s form features by utilizing its built-in scan height adjustment function. Variable height scanning allows the operator to precisely measure holes within formed and/or embossed parts.

Visual Verification

FabriVISION is able to qualify form features by projecting an outline of the form directly onto the part surface while the part is being visually inspected. This enables the operator to verify the proper placement of the formed feature.

Reverse Engineering

The scanning process captures the complete profile of existing parts or templates at laser speed. Then, the data is stored in AP100US PRT files or DXF files. The software also allows you to manipulate the scan data and part profile on-screen so that you can optimize the quality of the CAD model.
